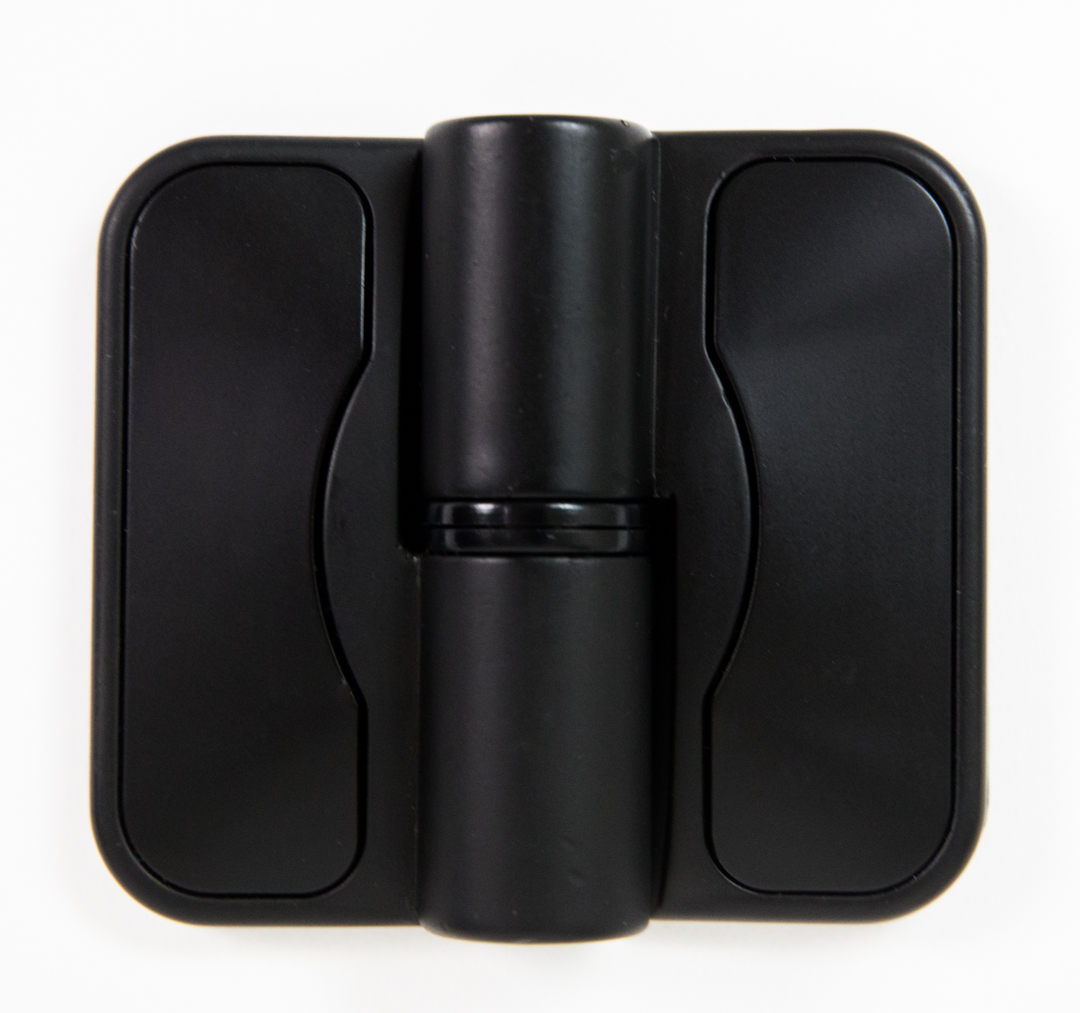

MODA_RHSPRING_DESIGNER (Designer Moda Series Spring Hinge, Right Hand – Concealed Screw Fix)

Tony Hill on 11/04/2023

MODA_RHSPRING_DESIGNER (Designer Moda Series Spring Hinge, Right Hand – Concealed Screw Fix)
MODA_RHSPRING_DESIGNER (Designer Moda Series Spring Hinge, Right Hand – Concealed Screw Fix) - Image 2

$28.95

MODA_RHSPRING_DESIGNER
(Designer Moda Series Spring Hinge, Right Hand – Concealed Screw Fix, Finish: Designer Black)
Enquire Now Download PDF
SKU: MODA_RHSPRING_DESIGNER Categories: ,

Description

MaterialDiecast Zinc, Alloy ZP3
Brass Shaft
Nylon Inserts
ABS Snap-On Covers
FinishDesigner Matte Black
MountingConcealed Screw Fix
Minimum Hinge Clearance For Lift-Off Hinges35mm
FeaturesSpring-assisted door opening/door closing
Fully Adjustable Spring to suit door – No Tension to Full Tension Spring
Reversible Hold Open / Hold Closed
Liftoff capability
Load Rating15Kg per hinge
For optimum performance
2 hinges per door up to 30Kgs
For doors over 30Kg allow for 15Kg per hingeNote: 3 Hinges per door is recommended to prevent door bowing
